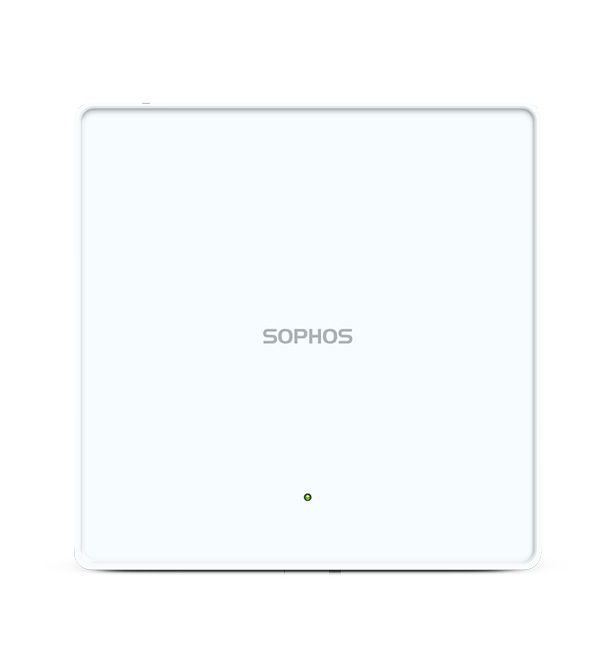

SOPHOS AP6 840E - ACCESS POINT - WIRELESS

Deployment
Indoor environment

General
STANDARD
Wi-Fi 6 / Wi-Fi 6E (802.11ax)

RADIO BANDS
2.4 GHz, 5 GHz, 6 GHz

MANAGEMENT
Sophos Central cloud platform
Local user interface (standalone AP)

USE CASES
High-end, high-density environments, e.g., retail, medium and large offices, higher education, various vertical markets, modern high-tech environments with 6 GHz clients

Performance
RADIO SPECIFICATION
4x4x4, Triple radio
Single 2.4 GHz band
Single 5 GHz band
Single 6 GHz band

MAX. THEORETICAL DATA RATES
8350 Mbps total
1150 Mbps (2.4 GHz) +
2400 Mbps (5 GHz) +
4800 Mbps (6 GHz)

ANTENNAS
8 internal omnidirectional antennas
4x dual-band 2.4/5 GHz antennas
4x 6 GHz antennas

DFS
Yes

Physical specifications
MOUNTING
Desk, wall, or ceiling

MOUNTING KIT
Includes:
Wall and ceiling mount bracket (15/16" or 9/16" T-bar).
Optional:
Flat ceiling, plenum, and suspended mount kits.

INTERFACES
1x 2.5 Multigigabit Ethernet port with 802.3bt PoE++
1x 2.5 Multigigabit Ethernet port
Micro-USB console

POWER REQUIREMENT (PSE)
45 W

POWER-OVER-ETHERNET
PoE++ 802.3bt

DIMENSIONS
225 x 225 x 43 mm

WEIGHT
1.2 kg

CERTIFICATIONS & COMPLIANCE
CB, UL, CE, FCC, ISED, RCM, TEC.
EN 60601-1-2 (Medical Equipment Directive)
Plenum rated (UL2043)

WARRANTY
Limited lifetime warranty

Full specifications:
https://www.sophos.com/en-us/products/secure-wifi/tech-specs.aspx
